Understanding Aramid Honeycomb Core

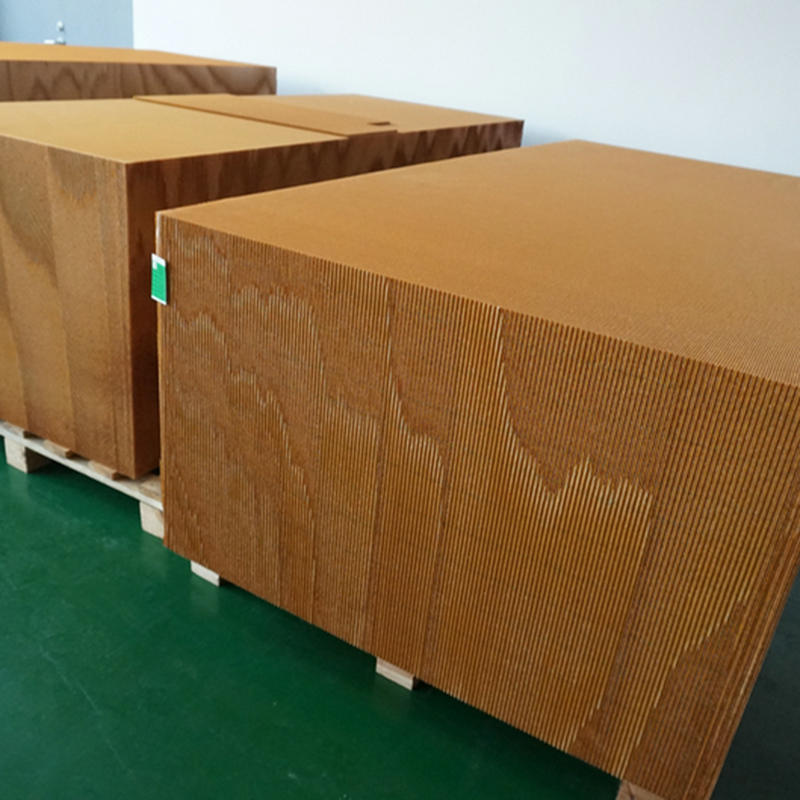

Aramid honeycomb cores are made from aramid fibers, which are known for their high strength and heat resistance. The honeycomb structure provides a large amount of open space, which results in a very low weight. The core is typically used in sandwich structures, where it is sandwiched between two face sheets. This combination creates a composite material that is both strong and lightweight.

The density of aramid honeycomb core plays a fundamental role in determining its mechanical properties. Density is defined as the mass per unit volume of the honeycomb core. It can be adjusted during the manufacturing process by changing several factors such as the thickness of the cell walls, the size of the honeycomb cells, or the type of resin used for impregnation.

The Relationship between Compression Strength and Density

Theoretical Explanation

From a theoretical perspective, the compression strength of aramid honeycomb core is expected to increase with an increase in density. When the density of the honeycomb core rises, the thickness of the cell walls usually increases. Thicker cell walls can withstand more load in compression. According to the theory of cellular materials, the compression strength of a honeycomb structure is related to the mechanical properties of the base material (aramid in this case) and the geometry of the honeycomb cells.

The bending and buckling resistance of the cell walls are key factors in determining the compression strength. As the density increases, the cell walls are less likely to buckle under compressive loads. The work - hardening effect of the aramid material also becomes more prominent at higher densities, which contributes to the overall increase in compression strength.

Experimental Evidence

Numerous experimental studies have confirmed the positive correlation between the compression strength and density of aramid honeycomb core. For example, in a set of experiments where samples of aramid honeycomb cores with different densities were prepared, it was found that those with higher densities could withstand significantly higher compressive forces before failure.

In these experiments, samples were placed under a universal testing machine, and the compressive load was gradually increased until the honeycomb core failed. The failure modes included cell wall buckling, crushing, and delamination. The results clearly showed that as the density of the honeycomb core increased, the maximum compressive load it could bear also increased.

Factors Influencing the Compression Strength - Density Relationship

Cell Size

The size of the honeycomb cells is another important factor that can influence the relationship between compression strength and density. Generally, for a given density, smaller cell sizes result in higher compression strength. Smaller cells mean that there are more cell walls per unit volume to resist the compressive load.

In addition, the aspect ratio of the cells (the ratio of the cell height to the cell width) also affects the compression strength. A more appropriate aspect ratio can enhance the overall stability of the honeycomb structure under compression.

Resin Impregnation

The type and amount of resin used for impregnating the aramid honeycomb core can have a significant impact on the compression strength - density relationship. A high - quality resin can improve the adhesion between the aramid fibers and increase the overall stiffness of the cell walls.

When the density is relatively low, the addition of an appropriate amount of resin can help to transfer the load more effectively between the cells, thereby increasing the compression strength. However, excessive resin impregnation can lead to a significant increase in weight without a corresponding increase in compression strength, which is not desirable in applications where weight is a critical factor.

Application - Oriented Considerations

Aerospace Applications

In the aerospace industry, aramid honeycomb cores are widely used in aircraft structures such as Aramid Honeycomb Core For Aircraft Tail Fins and Aramid Honeycomb Core For Aircraft Wings. The choice of density is a delicate balance between compression strength and weight.

For components that are subject to high compressive loads, such as the leading edges of wings or the stabilizers, higher - density aramid honeycomb cores are often used to ensure sufficient compression strength. On the other hand, for non - critical or secondary structures, lower - density cores can be used to reduce the overall weight of the aircraft.

Marine Applications

In the marine industry, aramid honeycomb cores are used in yacht interiors. Nomex Aramid Honeycomb -- Yacht Interior Honeycomb Panel provides a lightweight and strong solution for yacht cabins. The compression strength requirements in marine applications are different from those in aerospace.

In marine environments, the honeycomb core needs to resist the forces caused by waves, vibrations, and impacts. The density of the aramid honeycomb core is selected based on the specific application area within the yacht. For areas that are likely to experience high loads, such as the deck or bulkheads, a higher - density core may be preferred.

Conclusion and Call to Action

In conclusion, the compression strength of aramid honeycomb core has a positive correlation with density. However, this relationship is also influenced by other factors such as cell size and resin impregnation. As a supplier of aramid honeycomb core, we understand the importance of these relationships in different applications.

Whether you are in the aerospace, marine, or other industries, and have specific requirements for the compression strength and density of aramid honeycomb core, we are here to help. Our team of experts can provide you with customized solutions based on your needs. If you are interested in purchasing aramid honeycomb core or would like to discuss your project in detail, please feel free to contact us for further negotiation
